Views: 0 Author: Site Editor Publish Time: 2026-09-15 Origin: Site
Procurement and supply chain managers face a difficult balancing act. You must drive aggressive unit-cost reduction while maintaining stringent quality assurance. Purchasing bulk glass requires avoiding manufacturers who cut corners on raw materials, furnace temperatures, or the annealing process. A minor deviation in manufacturing halts your entire operation.
Successful sourcing requires moving beyond the initial price quote. You must evaluate a supplier’s compliance documentation, scrutinize defect tolerance levels, and verify manufacturing consistency. By understanding the technical parameters of glass production, you secure reliable packaging that protects the product and the production schedule.
Material Compliance is Non-Negotiable: True food grade soda lime bottles must meet FDA GRAS (Generally Recognized as Safe) standards as a Food Contact Substance (FCS) and classify as Type III glass, requiring verified heavy metal and migration testing.
Dimensional Tolerances Dictate Efficiency: Microscopic variations in neck finish or wall thickness can halt automated capping machinery; bottle dimensional consistency is the primary metric for operational scalability.
Thermal, Pressure, and Handling Limits: While highly cost-effective, soda-lime glass has lower thermal shock resistance than borosilicate, requiring strict evaluation of pasteurization, hot-fill, carbonation, and commercial washing requirements.
Supplier Auditing Prevents Transit Loss: A qualified food grade glass bottle supplier will provide transparent AQL (Acceptable Quality Limit) reports and utilize robust palletizing protocols to minimize bulk shipping breakage.
Buyers frequently question whether they need borosilicate glass to guarantee food safety. For the vast majority of food and beverage applications, borosilicate is unnecessary over-engineering. Soda-lime glass dominates the packaging industry, accounting for roughly 90% of all food and beverage containers. The primary reason is the exceptional cost-to-performance ratio. Soda-lime glass melts at a significantly lower temperature than borosilicate, typically around 1500°C. This lower melting point reduces energy consumption during manufacturing, which directly translates to a substantially lower unit cost. Furthermore, soda-lime glass is highly recyclable. Manufacturers routinely mix up to 50% or more cullet (recycled glass) into the batch, which accelerates the melting process and stabilizes the furnace temperature.
In regulatory and pharmaceutical terms, standard soda-lime glass is classified as Type III glass. This classification means it is an untreated glass that offers moderate hydrolytic resistance. For virtually all beverages, sauces, condiments, and dry foods, Type III glass is perfectly suited. It provides an impermeable barrier that protects against oxygen and moisture ingress. Unless you are packaging highly reactive chemicals, aggressive acids, or injectable pharmaceuticals that require extreme chemical inertness, Type III glass delivers all the necessary protective qualities for food safety. The hydrolytic resistance is more than sufficient to prevent the glass matrix from breaking down into the food product over a standard multi-year shelf life.
While soda-lime glass excels in cost and general durability, it has distinct thermal limitations. A standard soda lime beverage bottle possesses lower thermal shock resistance compared to borosilicate. Thermal shock occurs when glass experiences a rapid temperature change, causing different parts of the bottle to expand or contract at different rates, leading to fracture. Typically, soda-lime glass can withstand a sudden temperature differential of about 40°C (72°F). If your production involves transitioning bottles directly from a 4°C cold storage room into an 85°C hot-water pasteurization bath, the bottoms will blow out on the line. Gradual temperature stepping—warming the bottles in stages through a heating tunnel before hot-filling—is required to prevent catastrophic breakage.
Many brands are shifting toward returnable bottle programs or require rigorous pre-fill industrial sterilization. Soda-lime glass performs well in these environments, but it is not invincible. Commercial dishwashers use caustic chemicals, specifically sodium hydroxide, combined with high heat to achieve sterilization. Over repeated cycles, these harsh chemical washes cause surface degradation, often referred to as glass corrosion or etching. This manifests as a cloudy appearance on the bottle exterior and scuff rings around the shoulder and base. If you plan to reuse bottles dozens of times, you must evaluate the specific durability of the glass and specify specialized surface treatments that resist caustic wash environments.
Operational scalability relies entirely on predictability. When running automated filling and capping machinery at high speeds, bottle dimensional consistency is your primary metric. The neck finish—the threaded area where the closure attaches—must be manufactured to exact tolerances. If the T-dimension (thread diameter) is off by even a fraction of a millimeter, the capping chucks will jam or crush the glass. If the threads are too thin, the closure will not seal properly, leading to leaks, loss of carbonation, and rapid product spoilage.
Wall thickness is equally vital. Inconsistent glass distribution during the molding process creates thin spots in the bottle walls, particularly in the heel (the lower curve of the bottle). These weak points are highly susceptible to impact breakage during commercial handling and transit. Furthermore, uneven wall thickness alters the internal volume of the bottle. Your automated fillers dispense a precise amount of liquid, but if the internal capacity varies, the fill line will look uneven on the retail shelf.
Glass manufacturing is a complex thermal process, and minor imperfections are inevitable. Experienced inspectors categorize these defects strictly to ensure a uniform finish and structural safety. You must establish a clear Acceptable Quality Limit (AQL) with your manufacturer before production begins. A standard AQL might set a 0.0% tolerance for critical defects, 1.5% for major defects, and 4.0% for minor aesthetic flaws.
Defect Type | Description | Structural Impact | Severity Level |
|---|---|---|---|
Checks | Micro-fractures or small cracks, often near the neck, shoulder, or base. | Severely compromises impact and pressure resistance. High risk of bursting on the fill line. | Critical |
Bird Swings | A thin string of glass stretching across the inside of the bottle. | Can break off during filling, introducing glass shards directly into the food product. | Critical |
Stones | Unmelted batch material or refractory brick embedded in the glass wall. | Creates massive internal stress concentration. The bottle will likely shatter under pressure. | Critical |
Cords | Visible viscous streaks in the glass indicating poor melting and uneven composition. | Creates internal stress points. Reduces thermal shock resistance. | Major |
Blisters | Large trapped air bubbles within the glass wall. | Creates thin, fragile spots susceptible to puncture or crushing. | Major |
Seeds | Tiny, pinpoint air bubbles scattered in the glass matrix. | Mostly aesthetic. Does not typically affect structural integrity unless heavily clustered. | Minor |
Once a glass bottle is formed at extreme temperatures, it must be cooled properly. This cooling process is called annealing, and it takes place in a long, temperature-controlled tunnel known as a lehr. The lehr reheats the glass slightly to relieve forming stresses, then cools it at a highly controlled rate. If glass cools too quickly, the outside hardens while the inside remains hot and expanded. This creates massive internal stress. A poorly annealed bottle might look perfect but can explode spontaneously from a minor tap on the conveyor belt. Buyers should routinely request polariscope testing data from their suppliers. A polariscope uses polarized light to reveal internal stress patterns (birefringence) within the glass, allowing you to verify structural integrity before authorizing bulk shipments.

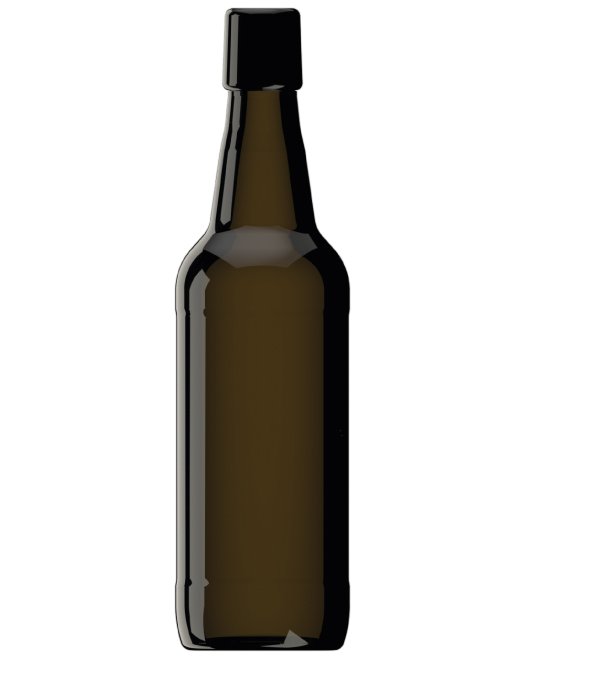

Food Grade Glass Bottles Manufacturing
Regulatory compliance is the foundation of food-safe packaging. In the United States, the FDA classifies Food Grade Soda Lime Bottles as a "Food Contact Substance" (FCS), rather than a "Food Additive." Because glass is inherently stable and impermeable, it is Generally Recognized as Safe (GRAS). However, this GRAS status applies to the pure silica, soda ash, and limestone matrix. You must still obtain specific documentation from your supplier proving that their specific manufacturing process and raw material sourcing align with FDA standards or equivalent EU frameworks like EC 1935/2004.
The primary safety risk in glass manufacturing comes from contaminated raw materials or poorly sorted recycled cullet. If a manufacturer uses cheap, unverified recycled glass, it may introduce heavy metals into the melt. You must demand recent, third-party laboratory reports verifying the absolute absence of leachable lead, cadmium, and other toxic heavy metals. These tests usually involve leaching the glass with a 4% acetic acid solution over 24 hours to simulate worst-case food contact scenarios. Without these independent lab reports, you carry immense liability.
Glass bottles rarely leave the factory as raw glass. They undergo surface treatments to survive the harsh realities of high-speed filling lines. Hot end coatings, typically a microscopic layer of tin oxide or titanium tetrachloride, are applied at around 500°C immediately after forming to strengthen the glass surface. Cold end coatings, often polyethylene wax or oleic acid, are applied after the annealing lehr at around 100°C to provide lubricity. This lubricity prevents bottles from scuffing each other and allows them to glide smoothly through automated accumulation tables. You must verify that these specific chemical coatings are certified food-safe, as they will inevitably come into contact with the lip of the consumer and the product itself during the filling process.
A low price quote means nothing if the factory lacks the technology to deliver consistent quality at scale. When auditing a food grade glass bottle supplier, assess their technological footprint. Modern glass plants utilize automated IS (Individual Section) machines. These machines allow for precise control over the gob of molten glass, ensuring better distribution and uniform wall thickness. Ask about their daily tonnage capacity and whether they run 8-section or 10-section machines. A supplier with a high daily tonnage and modern double-gob or triple-gob IS machines is far more likely to handle large volume swings and maintain strict tolerances than a facility relying on outdated equipment.
Human inspection is inherently flawed when dealing with hundreds of bottles per minute. Relying solely on manual QA leads to defect fatigue, where inspectors simply miss critical flaws. You should prioritize suppliers who utilize in-line automated optical inspection systems. These high-speed camera systems scan every single bottle from multiple angles as it exits the annealing lehr. They instantly detect micro-fractures, measure neck finish dimensions, check for bottom thickness, and reject non-compliant bottles automatically. Automated inspection is the only reliable way to guarantee high-speed consistency.
The journey from the factory floor to your filling line is hazardous. Poor palletizing is the leading cause of transit breakage. When sourcing bulk glass bottles, evaluate the supplier’s packaging protocols strictly. Rigid layer pads (solid fiber or heavy corrugated board) must separate each tier of bottles to distribute weight evenly. The entire pallet must be secured with heavy-duty strapping and wrapped in thick shrink film or a stretch hood to prevent any load shifting during transit. Edge protectors should be used to maintain pallet structure. For international shipping, ensure the supplier provides ISPM 15 fumigation certificates for all wooden pallets to avoid customs delays.
Brands looking to stand out on the shelf often consider proprietary bottle shapes. Commissioning custom glass packaging involves significant financial and temporal commitments. Creating custom molds—which includes the blank mold for initial shaping, the blow mold for final detailing, neck rings, and baffle plates—requires substantial upfront tooling costs. Manufacturers require high Minimum Order Quantities (MOQs) to justify halting a furnace to switch out molds, a process that can take 6 to 12 hours of downtime. While stock bottles might have MOQs as low as a few pallets, custom runs typically demand 50,000 to 100,000 units per production run.
Custom packaging offers powerful returns for premium brand positioning. A unique bottle silhouette or custom embossing serves as a physical trademark, instantly differentiating your product from competitors using standard Boston Rounds or generic beverage bottles. It builds intellectual property and enhances perceived value. You must factor in extended lead times. Designing the mold, producing physical samples, testing those samples on your line, and executing full production adds 12 to 16 weeks to your sourcing timeline.
A common tactic among unscrupulous suppliers is quoting a standard, heavy-weight bottle to win the contract, but delivering lightweighted bottles to save on material costs. Lightweighted glass is not inherently bad, but it must be engineered correctly using processes like NNPB (Narrow Neck Press and Blow). If a supplier arbitrarily reduces glass weight using a standard Blow-Blow process without redesigning the structural geometry, the walls will be too thin and the bottles will fail under standard capping pressure. Always weigh your incoming samples and compare them strictly against the agreed-upon technical specifications.
Sourcing bottles from one supplier and caps from another is standard practice, but it introduces massive compatibility risks. Never assume a generic "28mm cap" will fit a "28mm neck." You must cross-reference the exact GPI (Glass Packaging Institute) or GCMI thread finish specifications. A 28-400 finish is entirely different from a 28-410 finish, specifically regarding the H-dimension (height of the finish). Failing to match these exact specifications will result in closures that cross-thread, leak, or pop off during transit.
Approving bulk production based on a visual inspection of a single sample is a recipe for disaster. You must subject physical samples to rigorous real-world testing before signing the contract. Implement a strict sample evaluation checklist:
Fill Line Simulation: Run the samples through your actual automated filling equipment at standard operating speeds to check for conveyor jamming.
Application Torque Testing: Apply caps using your machinery to ensure the neck finish withstands the required application torque without chipping.
Hydrostatic Pressure Testing: For carbonated beverages, test the internal pressure limits to ensure the bottles will not burst on the shelf.
Vertical Load Testing: Simulate warehouse stacking weights to ensure the bottle geometry can support palletized loads.
Thermal Shock Testing: Subject the bottles to your exact temperature differentials if your process involves hot-filling or pasteurization.
Request comprehensive specification sheets from shortlisted suppliers, demanding detailed technical drawings of the neck finish and wall thickness tolerances.
Demand recent third-party laboratory reports verifying heavy metal compliance and FDA GRAS status.
Order a sample run of at least a few hundred units to conduct physical line testing, torque testing, and thermal evaluations on your actual equipment.
Establish a written AQL agreement defining exact defect tolerances before issuing your first purchase order.
A: Yes. Soda-lime glass is highly stable and classified by the FDA as a Food Contact Substance (FCS) with GRAS status. It does not leach harmful chemicals into food or beverages. Buyers must still verify safety by requesting third-party heavy metal testing from their manufacturer to ensure no lead or cadmium contaminates the raw materials.
A: Type I glass is borosilicate, which offers extreme chemical and thermal resistance, making it ideal for harsh lab environments or injectable pharmaceuticals. Type III glass is standard soda-lime glass. It is highly cost-effective, easily recyclable, and provides excellent barrier protection, making it the standard choice for most food and beverage packaging.
A: Yes, but with strict limitations. Soda-lime glass has moderate thermal shock resistance, typically handling a temperature differential of about 40°C (72°F). Hot-filling requires careful temperature stepping. You must pre-warm the bottles gradually in a heating tunnel before introducing hot liquids to prevent the glass from cracking or shattering on the line.
A: Soda-lime glass performs well, but repeated industrial washing cycles cause surface degradation. The high heat and caustic chemicals used in commercial dishwashers eventually etch the glass, causing a cloudy appearance. For returnable bottle programs, specify durable surface coatings to extend the visual lifespan of the packaging.
A: Buyers should request detailed technical drawings highlighting neck finish (GPI/GCMI) and wall thickness tolerances. Next, require a physical sample run to test on actual capping machinery. Finally, audit the supplier to ensure they use automated optical inspection systems rather than relying solely on manual visual checks.
A: Minimum Order Quantities for custom molds usually start between 50,000 and 100,000 units. This high volume is necessary because manufacturers must halt continuous furnace operations to install and calibrate the new blank and blow molds. Stock bottles typically have much lower MOQs, often starting at just a few pallets.
A: Standard industrial packaging utilizes robust palletizing protocols. Bottles are stacked in tiers separated by rigid layer pads to distribute weight evenly. The entire load is secured with heavy-duty strapping, wrapped in thick heat-shrink film to prevent shifting, and reinforced with hard edge protectors to maintain the pallet's structural integrity during transit.
